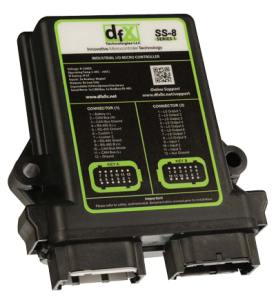

Our SS8 is a heavy-duty industrial IO micro-controller with embedded IOT capabilities designed for controlling and monitoring applications requiring multiple inputs and outputs. The SS8 in its standard hardware configuration includes 8x low-side outputs, 3x analog / digital inputs and 2x serial communication ports for Modbus RTU RS-485 and CANbus. These seral ports can be used for connecting an engine ECU, sensors, equipment HMI’s or other electronics to our controller. This powerful IO module can be embedded with a fully certified Wi-Fi module or a cellular G3 modem giving the SS8 advanced IOT capabilities. An added benefit of the IOT embedded […]

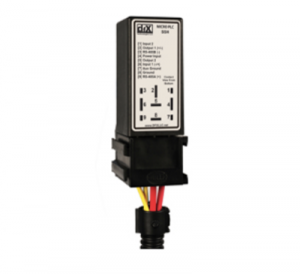

The SS1HB module is idea for driving electric motors and actuators up to 5A/12VDC continuous duty. This compact module is housed inside of an automotive style relay enclosure and can be used in heavy-duty industrial applications such as: linear actuator control, proportional valve Control, DC electric motor control or as a Modbus RS-485 H-Bridge slave device. The SSHB software can be customized by our engineering team with soft-start-stop, custom stepper function or even programmed with an automatic repeat timing function. SSHB modules includes 2x configurable inputs for adding addition functionality, and an optional Modbus RS-485 serial communication connections. The SSHB is an […]

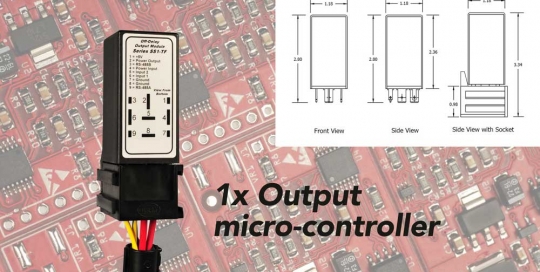

The SS1 I/O modules are ideal for applications requiring one output and up to two independently configured inputs. The SS1’s output can be configured with either a high-side signal, low-side signal or with an optional PWM output signal. The SS1 modular software design allows us to economically create custom software programs even for low volume prototypes. These compact modules are typically used for simple I/O requirements such as: On-Delay Timer, Off-Delay Timer, Repeat Cycle Timer / Flashers, Interval Delay Timer, After-run Timer, Latching / Bistable Relay, Battery Voltage Sensing Relay, Current Sensing Relay or as a high power Modbus […]

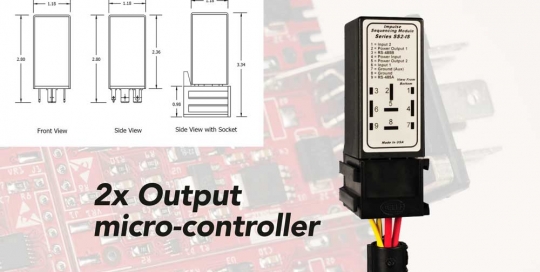

The SS2 I/O module hardware is designed for applications requiring two high-side outputs such as: Load Sharing Relay, Alternating Output Relay, Impulse Sequencing Relay. Outputs signals are independently configured and can often eliminate a secondary relay by combining multi-functionality into one module. The SS2 hardware platform is only available as a custom solution and can be customized by our engineering team. Please contact DFX Technologies, LLC sales department with your custom requirements.
SS2 Technical Specification:
Operating Temperature: -40 to +85 Degrees C
Voltage: 8 to 32 Volts
Current Draw: 3.5 mA with Load Off and 8 mA with […]
